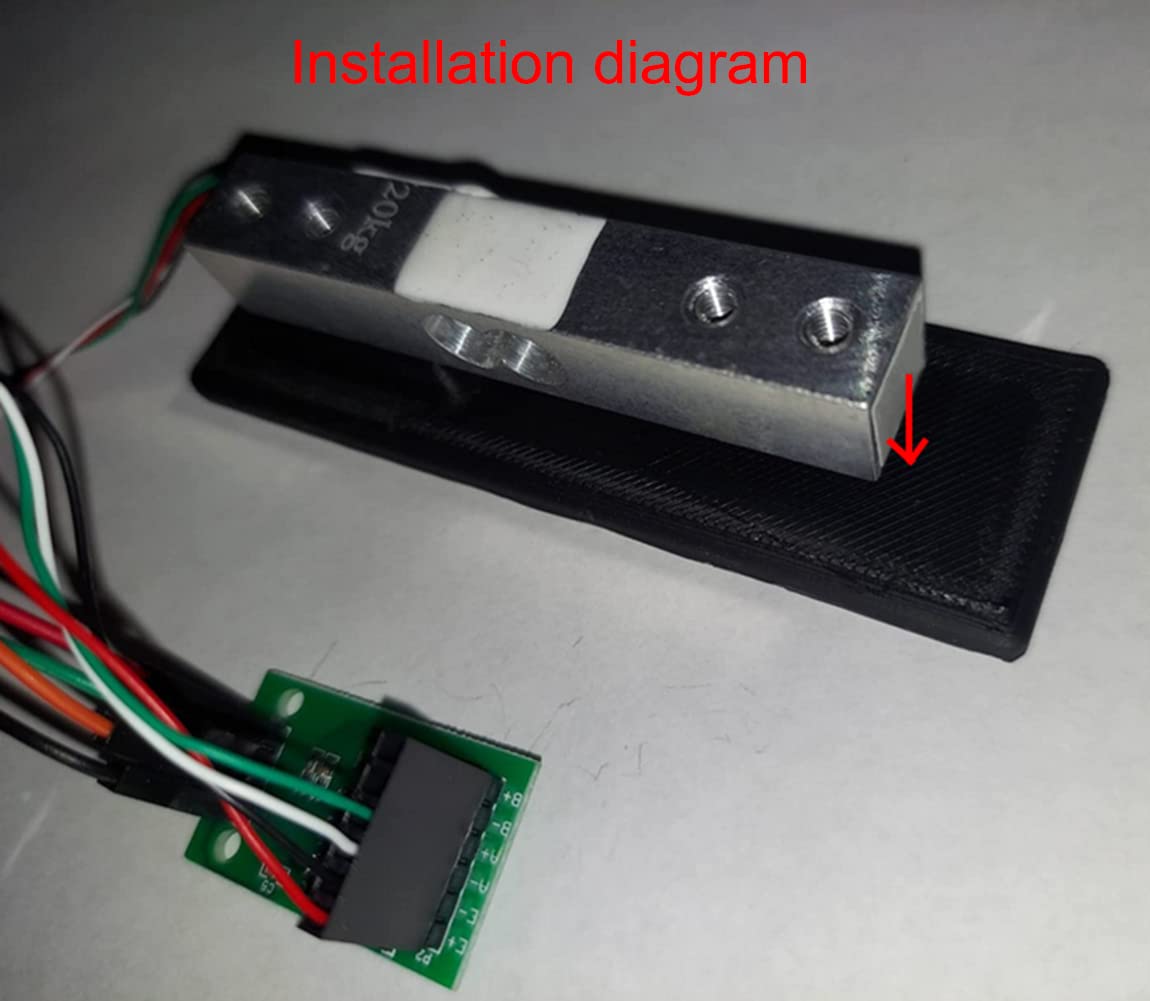

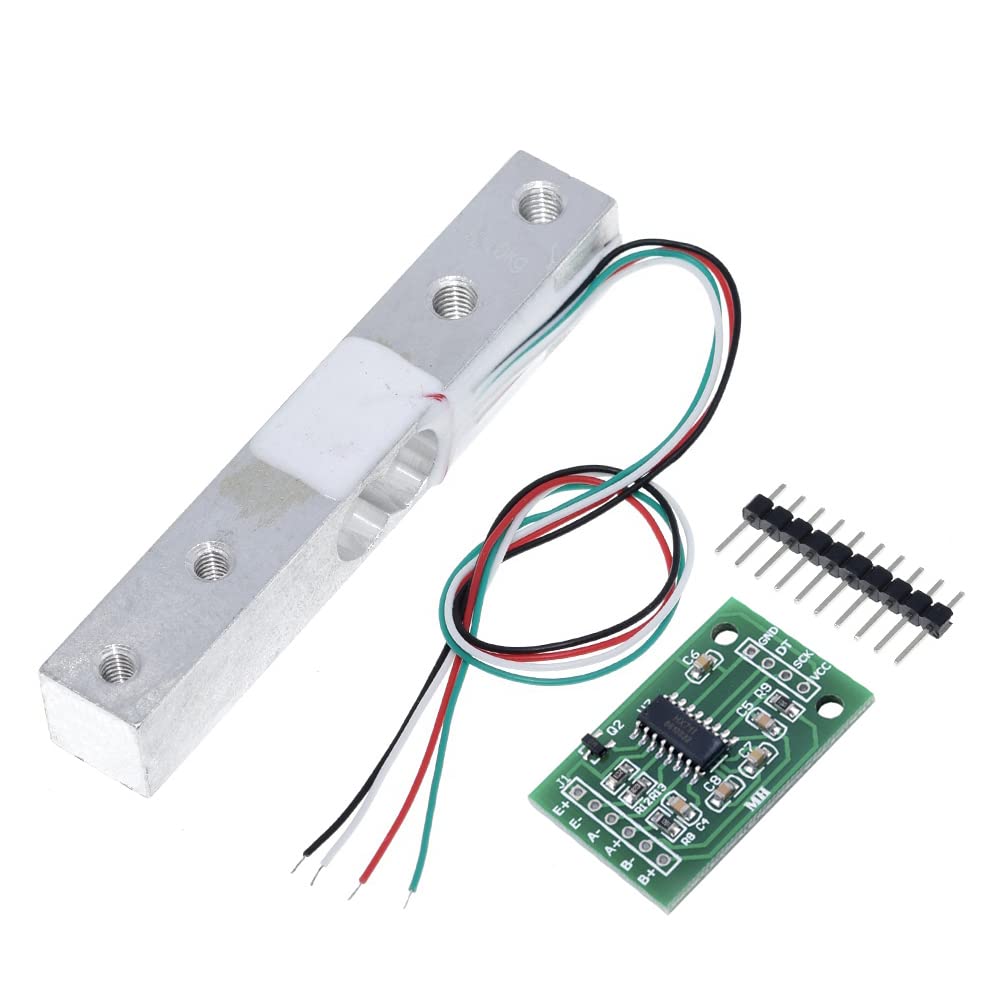

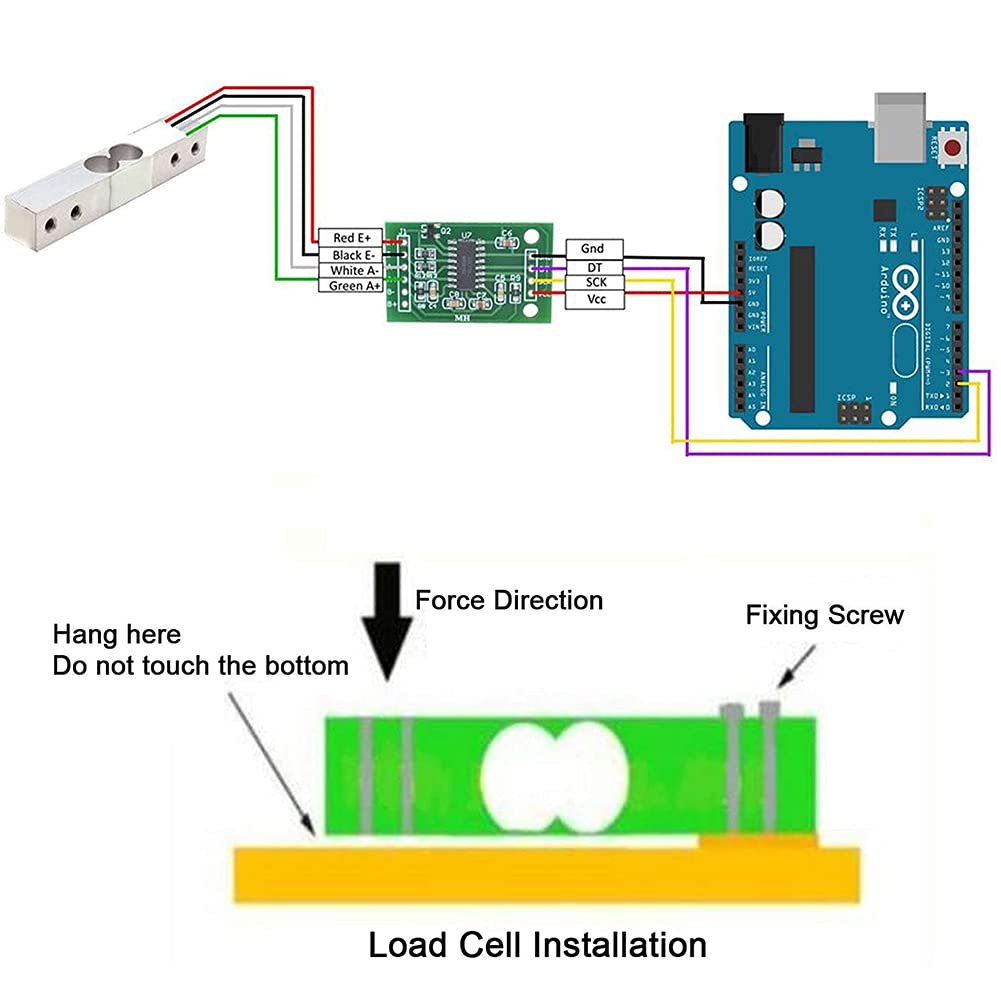

The Load Cell maximum measures force: 20kg (44lb) You need to connect load cell with HX711 module like this, Red to E+, Black to E-, Green to A+, White to A- Load Cell: 4 leads, easy to use, plus 5-10V drive voltage, direct output as a voltage signal due to force changes. Compatible with arduino and raspberry pi This HX711 module uses 24 high precision A/D converter chip hx711. It is a specially designed for the high precision electronic scale designwith two analog input channelthe internal integration of 128 times the programmable gain amplifier The HX711 On-chip active low noise PGA with selectable gain of 3264 and 128
